This thermal wind tunnel machine has the most complete fan performance testing and standard flow generation device. Suitable for thermal testing, airflow, air pressure, speed, and impedance testing.
Item No :
JX-WT60Testing Standards :
ANSI/AMCA 210-07Airflow Range :

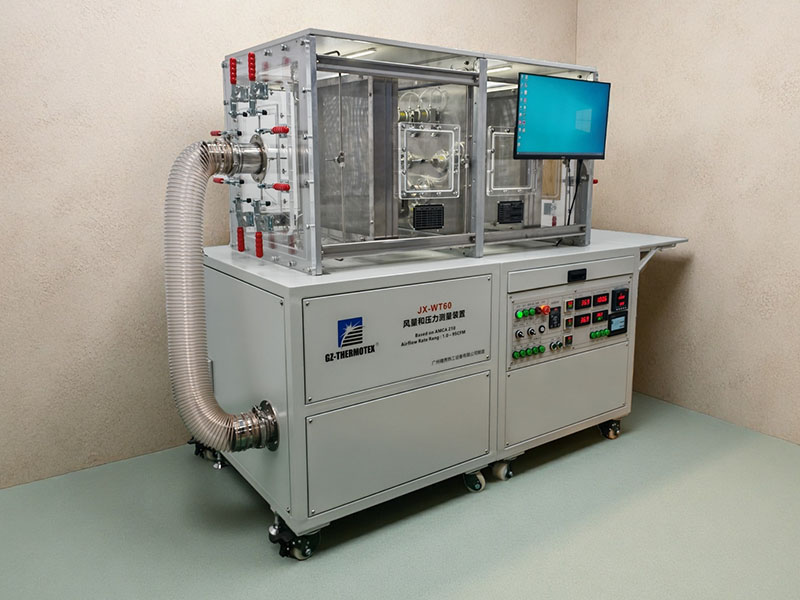

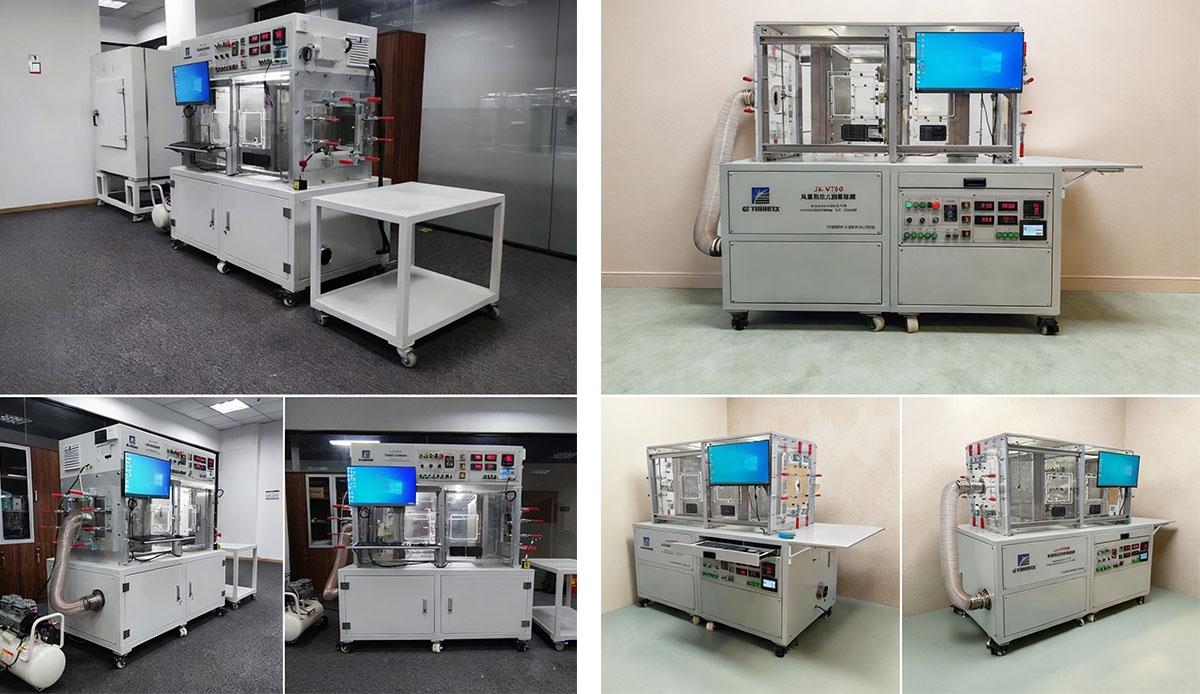

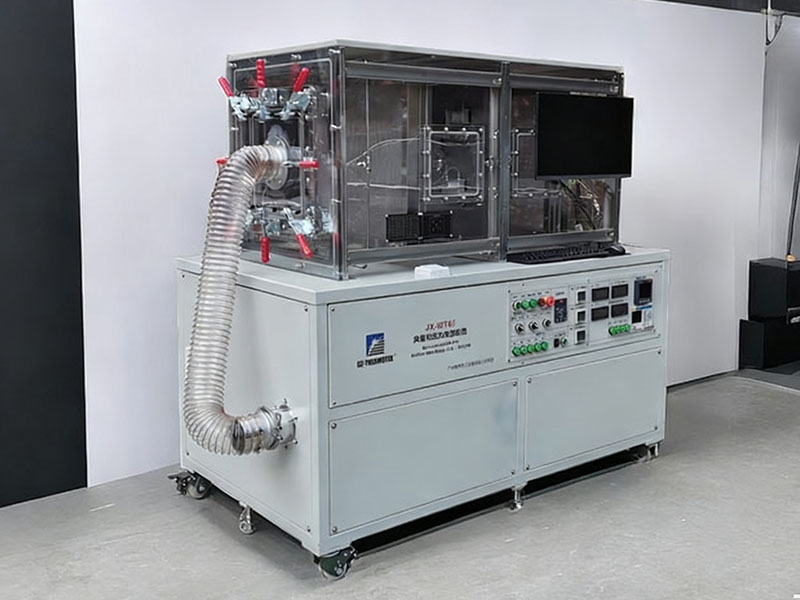

1.0～95CFMThermal Wind Tunnel Machine JX-WT60

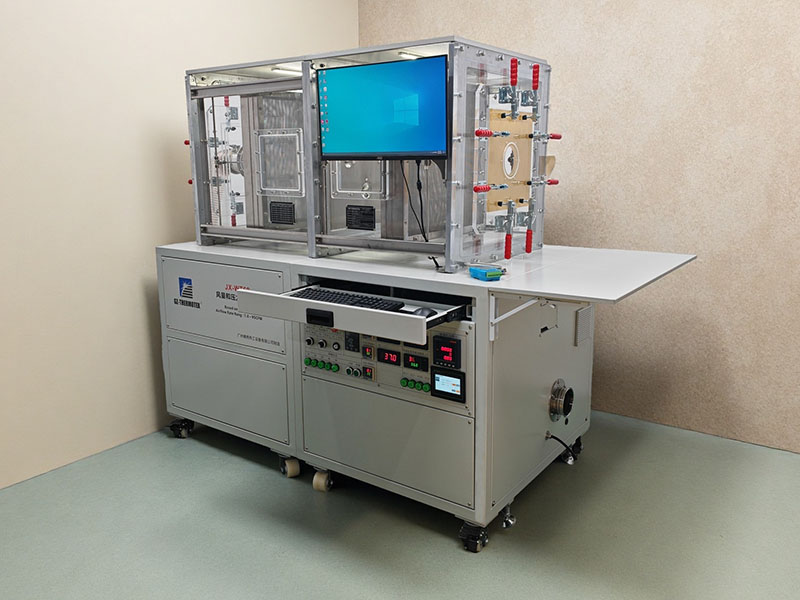

The JX-WT60 Wind Tunnel Machine is a professional fan airflow testing equipment, it is a specialized instrument widely applied in the performance testing of various fans and heat dissipation devices, including: cooling fans, AC fans, DC fans, micro fans, high-speed fans, nickel-iron foam fans, piezoelectric fans, computer CPU axial fans, blowers, and centrifugal fans. Additionally, this equipment is suitable for fluid mechanics research, enabling laboratory airflow testing under diverse wind speed conditions and delivering precise aerodynamic performance data.
Mainly Applicable to: Thermal Testing, Airflow Rate, Air Pressure, Rotational Speed, Impedance Testing.
Test Modes:
| Model | JX-WT4 | JX-WT60 | JX-WT250 | JX-WT600 | JX-WT1000 |
|---|---|---|---|---|---|
| Standard | AMCA210-07 | ||||
| Airflow (CFM) | 0.02–4.0 | 1.0–95 | 2.5–330 | 2.5–619 | 2.5–1120 |
| Pressure (mmAq) | 0–200 | 0–200 | 0–200 | 0–200 | 0–200 |
| Max Test Opening (mm) | 200 × 200 mm | 250 × 250 mm | 400 × 400 mm | 400 × 400 mm | 500 × 500 mm |
| Heat Transfer Section RQ Test | - | - | Optional | - | - |
| High Static Pressure Damper | - | - | Included | - | - |
| Multi-Fan Test Module | - | - | Optional | - | - |
| PWM Signal Generator | - | - | Included | - | - |
| Shaft Power & Torque Measurement | - | - | Optional | - | - |
| Dimensions (L × W × H, mm) | 1600 × 900 × 1600 | 1820 × 1000 × 1700 | 1820 × 1100 × 1750 | 1800 × 1200 × 1895 | 2450 × 1400 × 2100 |
| Power Supply | AC220V / 50Hz, 0.75 kW | AC220V / 50Hz, 1.5 kW | AC220V / 50Hz, 2.2 kW | AC380V / 50Hz, 3 kW | AC380V / 50Hz, 4 kW |
Flow Rate Calculation Formula
Flow rate of a single nozzle:
Qₙ = Cd× Uₙ × Aₙ
Total flow rate of multiple nozzles:
Q_T = ΣQₙ
Design Standards
Designed and manufactured according to the following standards:
AMCA 210-07; GB/T1236-2000; ISO5801-1997
BS848; DIN 24163; JIS B 8330-1981
Truly Present the Product's Details and Craftsmanship
Our portfolio is defined by partnerships with some of the most distinguished organizations and research bodies globally. We have successfully delivered expert solutions to a wide array of prestigious domestic and international clients, covering sectors ranging from telecommunications and electronics to motor systems and advanced materials. Our roster features tech giants like HUAWEI, AMD, OPPO, ZTE, Anker, and Goertek, alongside key manufacturing leaders such as LUXSHAREICT, CATCHER, KELLER, and China Drive Motors. Furthermore, our collaborative network extends to academic pioneers like Baibu Jiaotong University and innovators like APALTEX. This diverse track record serves as a testament to our reliability and multi-industry expertise.
CLWT100 closed-loop wind tunnel test stand is specifically engineered for the precise thermal analysis and characterization of Printed Circuit Boards (PCBs) and other electronic components. The system offers meticulous control over the testing environment, maintaining stable temperatures from ambient (room temperature) up to 85°C. It generates standard air velocities of up to 7 m/s and is fully customizable upon request to provide high-speed airflow configurations reaching 50 m/s.
Read More
The high static pressure blower and fan performance test bench is primarily used for testing cooling fans, AC/DC fans, computer CPU axial fans, blowers, and centrifugal fans. As an AMCA-210 standard test stand, it is expertly customized for the unique characteristics of high static pressure and high rotational speed fans, delivering a precision solution for all your testing requirements.
Read More
Our automated airflow & pressure test rig is a professional-grade fan testing solution engineered in compliance with the AMCA 210 standard. Designed for precise performance evaluation of various cooling fans and blowers, this system delivers fully automated, high-precision measurements of airflow (CFM) and static pressure parameters.
Read More
The JX-DWT5000 high capacity fan test chamber is a professional-grade system designed for precise aerodynamic testing. It features a wide airflow measurement range from 271 to 8,486 m³/h, with scalable options available for higher capacity requirements. This test rig delivers high-accuracy data for a variety of industrial high-airflow applications.
Read More
This industrial airflow and pressure testing equipment is a powerful device for testing airflow and air pressure. It is designed for the precise measurement of various fans and cooling fans. The AMCA 210 is designed and manufactured strictly according to the following standards: (1) GB/T1236-2000 (2) AMCA210-99 (3) ISO5801-1997 (4) BS848 (5) DIN 24163 (6) JIS B 8330-1981
Read More
This thermal wind tunnel machine has the most complete fan performance testing and standard flow generation device. Suitable for thermal testing, airflow, air pressure, speed, and impedance testing.
Read More
This Air Flow Test Equipment JX-WT250 is a professional air test equipment. It is ideal for performance testing of diverse fans & heat dissipation equipment. Including: Cooling Fans, AC Fans, DC Fans, Micro Blowers, High-Speed Blowers, Nickel-Iron Foam, Piezoelectric Fans, CPU Axial Fans for Computers, Blowers, Centrifugal Fans, etc. Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
JX-WT1000 AMCA-210 Airflow Test Chamber with computerized control system and P-Q curve display, designed for high-precision fan performance testing. It is a precision aerodynamic testing solution for high-performance fan Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
