High-precision air performance test bench for AC/DC vacuum cleaner motors. Fully complies with IEC 60312-2017, ASTM-F558, and ASTM-F820 standards. Ideal for global quality control and R&D. Dual EU & US standard compatibility.
Item No :
FST-AI02ADTesting Standards :

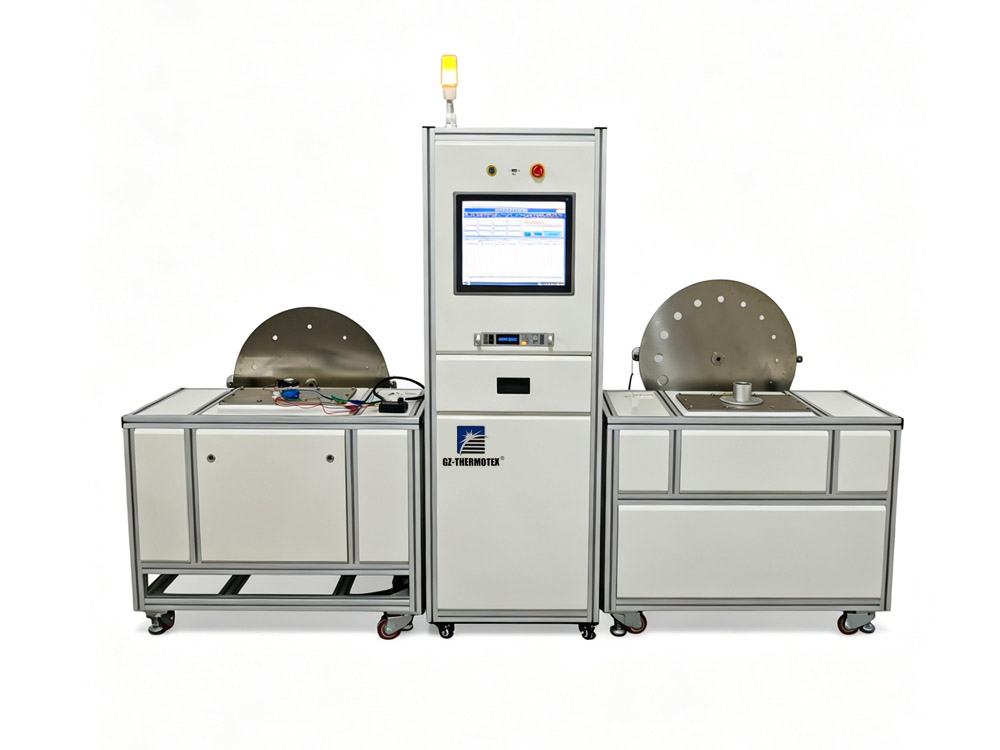

Dual EU & US standard compatibilityFST-AI02AD Comprehensive Vacuum Cleaner Motor Air Performance Test Bench
The FST-AI02AD is a professional-grade air performance testing system engineered specifically for AC and DC vacuum cleaner motors. Designed with an integrated dual-workstation architecture, it provides deep compatibility with both European and American international testing standards.
Whether you are conducting rigorous R&D for new product lines, performing daily quality control, or securing export certifications for the Euro-American markets, this test bench delivers the precision, stability, and automated data collection required to guarantee product excellence. It comprehensively supports the testing of household horizontal vacuum cleaners, central vacuum systems, and vertical intake motors.
This system completely eliminates the need for separate regional testing equipment by integrating dual compliance:
The FST-AI02AD is delivered as a turnkey solution. The standard configuration includes a modular control cabinet, dedicated EU and US workbenches with independent plenum chambers, a high-precision DC power supply (50V/60A), and a 5KW AC variable frequency power supply. The proprietary software suite offers robust functionality, including customizable testing intervals, instant threshold alerts, and the ability to generate, store, and print comprehensive air performance test reports for both the full vacuum assembly and individual series-wound motors.
Yes. The FST-AI02AD features a dual-standard testing architecture. It fully complies with the European IEC 60312-2017 (5.2.8.2 Type B) standard, as well as American standards including ASTM-F558, ASTM-F820 (for central vacuum systems), and ASTM-F431. It includes dedicated, standard-specific plenum chambers and automated orifice plates for each region's requirements.
The system is highly versatile and supports both AC and DC series-wound motors. It is designed to test horizontal vacuum cleaners (horizontal air intake), vertical intake motors, and central vacuum systems. The test bench handles an input power range of 0 to 3 KW and motor speeds up to 150,000 r/min.
The FST-AI02AD utilizes a motorized rotary turnplate for fully automated orifice switching. It includes 14 distinct aperture sizes for European standards and 16 sizes for American standards. Users can seamlessly switch between automated computer-controlled sequences or manual operation based on their specific laboratory needs.
The software includes an advanced environmental compensation feature. Operators can input real-time ambient temperature, humidity, and atmospheric pressure. The computer system automatically calculates and converts the raw testing data into standard environmental parameters, ensuring absolute accuracy and repeatability of the air performance metrics.
The data acquisition system captures readings in under 0.1 seconds per point and automatically generates real-time performance curves. The primary metrics and curves plotted include:
Yes. The proprietary computer control system includes data statistical analysis, reporting, and graphical print modules. Users can directly print comprehensive "Vacuum Cleaner Air Performance" and "Series-Wound Motor Air Performance" test reports using the standard integrated laser printer.
