NVH Leakage Tester (Simplified Version)

This Automotive NVH Air Leakage Tester can accurately monitor the amount of gas entering or escaping the vehicle cabin, measuring the gas leakage rate under both positive and negative pressure conditions. This equipment has become an industry standard for air tightness testing among international automobile manufacturers and is an essential tool for guiding automotive air tightness design.

The vehicle air tightness testing bench is suitable for air tightness testing at different stages of new model development, providing accurate data support for both body-in-white and complete vehicle air tightness. It can provide various gas flow rates to the air vents, meeting different testing needs.

Features:

The vehicle air tightness testing bench not only helps automobile manufacturers improve product quality but also significantly enhances user driving experience and safety. Through rigorous air tightness testing, it can effectively prevent noise pollution, air pollution, and water ingress, providing users with a more comfortable and safe driving environment.

Body-in-white Static Gas Leakage Test

Detects the basic air tightness of the car without external trim and accessories.

Complete Vehicle Static Air Tightness Leakage Test

Utilizing continuous power regulation technology, it achieves temperature control accuracy better than ±0.5℃, ensuring a stable and reliable temperature baseline.

Complete Vehicle Internal And External Zero Pressure Difference Air Conditioning System Airflow Test

Tests the airflow of the in-car air conditioning system under zero pressure difference conditions to ensure optimal air conditioning performance.





Technical Parameters



Measuring Principle: Thermal Air Flow Sensor

Air Flow Range: 10～1000 m³/h; or 5.89～589 SCFM

Air Flow Accuracy: ±1%

Air Flow Resolution: 0.1 m³/h

Static Pressure & Control Range: -1.0～1.0 inH₂O (-250Pa ~ 250Pa)

Static Pressure Control Accuracy: ±1%

Static Pressure Resolution: 0.01 inH₂O

Storage Temperature: -20℃ ~ 50℃

Operating Temperature: 5℃ ~ 35℃

Power Supply: AC 220V±10%, 50Hz±10%

Rated Power: 2.2kW, 10A

Equipment Dimension: 1048×696×1100mm (L×W×H)

Mobility: Casters for flexible movement within factory

Data Storage: USB data export, storage capacity ≥16GB





Software Functions



1. Measurement items: Vehicle body positive pressure, static pressure, vehicle body gas leakage rate, air conditioning airflow, etc.;

2. Characteristic curve graph: The vertical and horizontal axes can be selected to represent static pressure, voltage, current, power, and efficiency, respectively, to obtain a curve graph showing the relationship between parameters, thereby observing the vehicle body gas leakage rate;

3. Simulation of customer test conditions;

4. Fault alarm;

5. Data acquisition and data storage;

6. Selectable Chinese and English interface;

7. Test condition simulation and setting;

8. Historical data management of test piece specifications;

9. Test data saving and printing;

10. Curve graph: The vertical and horizontal axes can be selected to simulate the relationship curve graph between different performance parameters based on the relationship between airflow, static pressure, speed, voltage, current, and power.

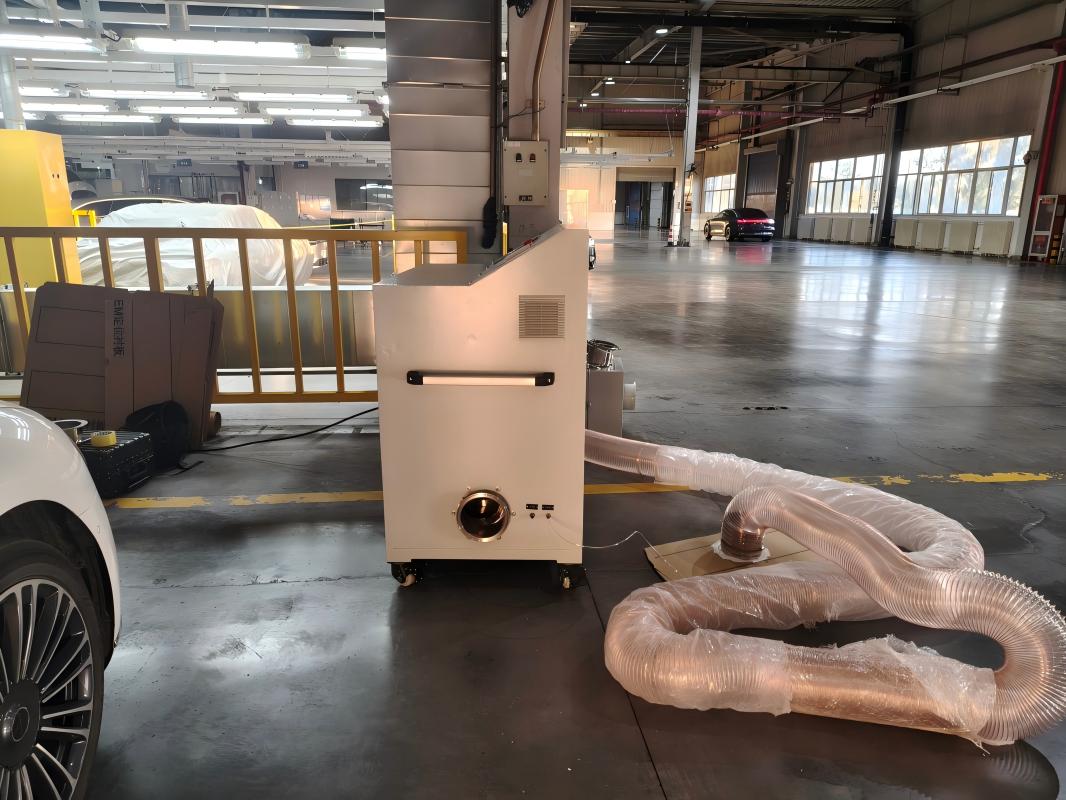

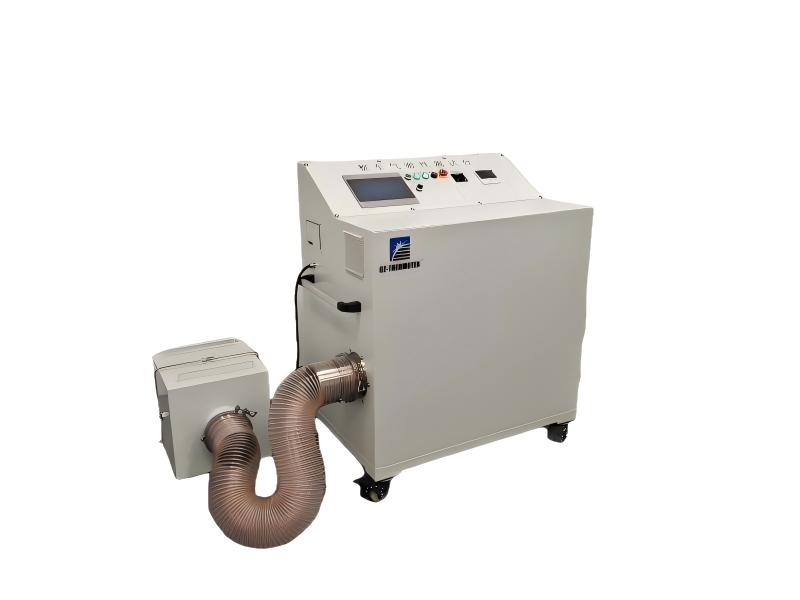

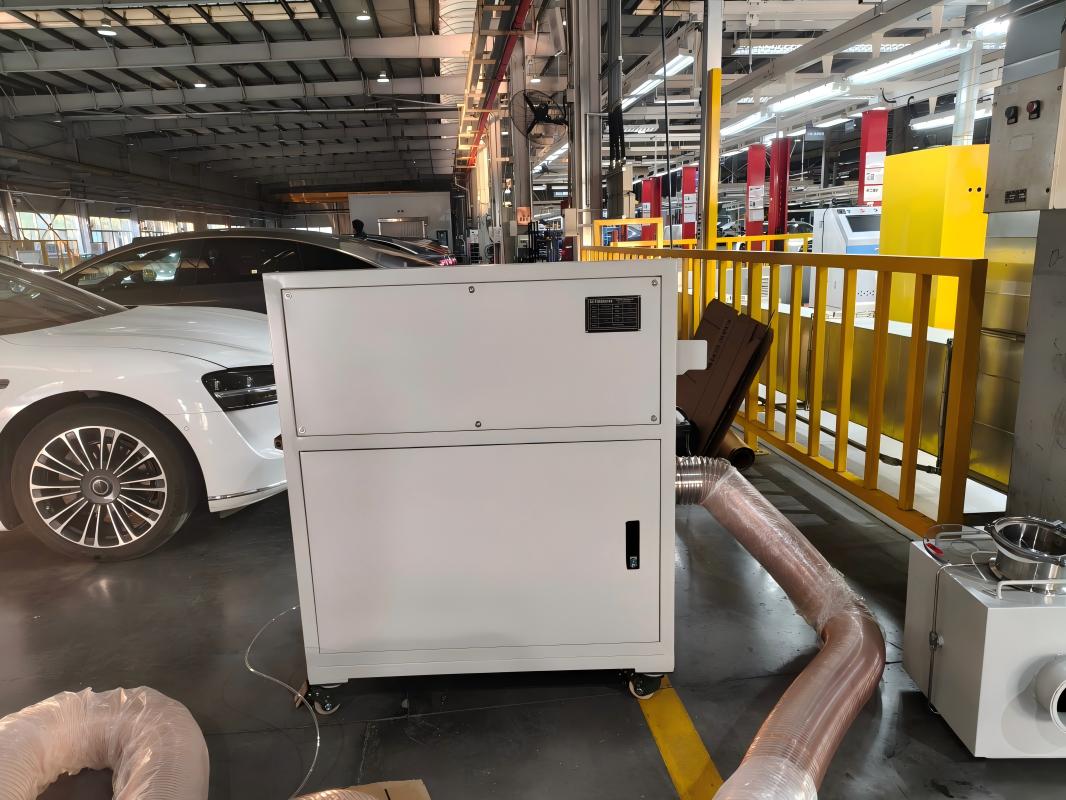

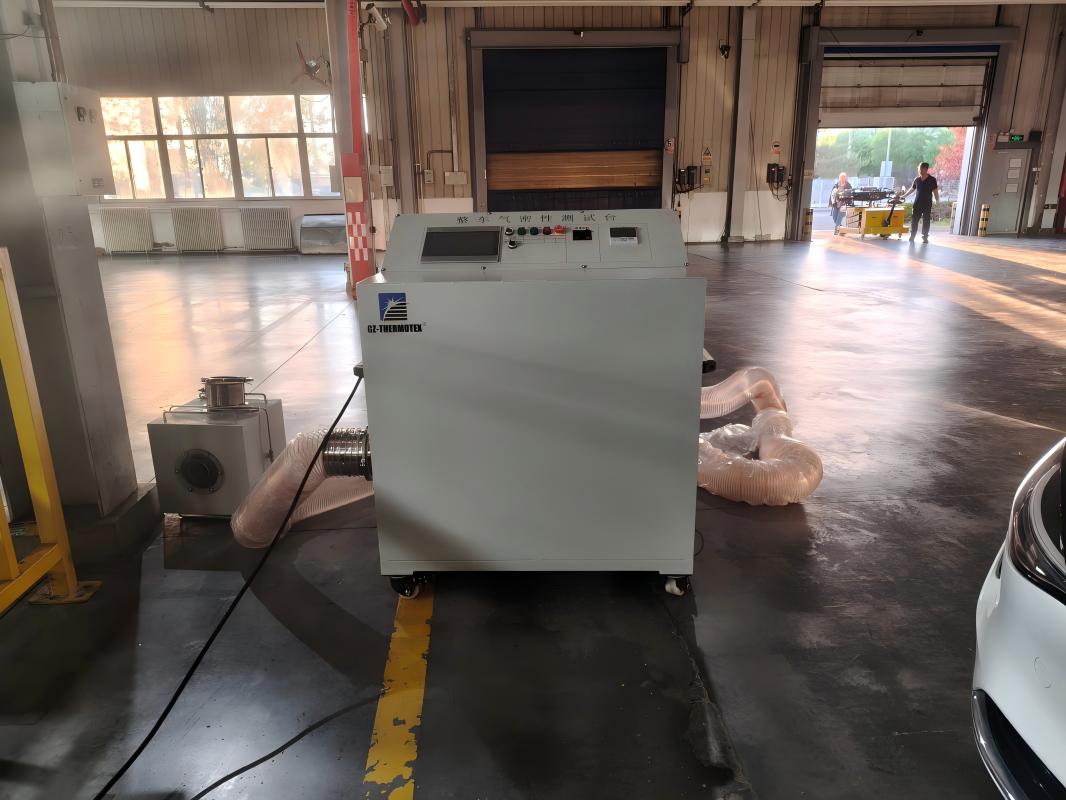

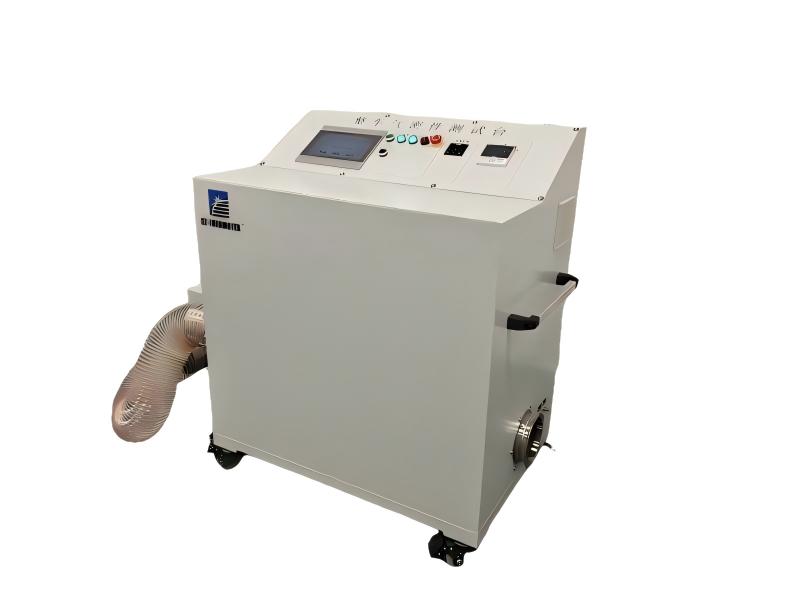

Product Display



•
•
•
