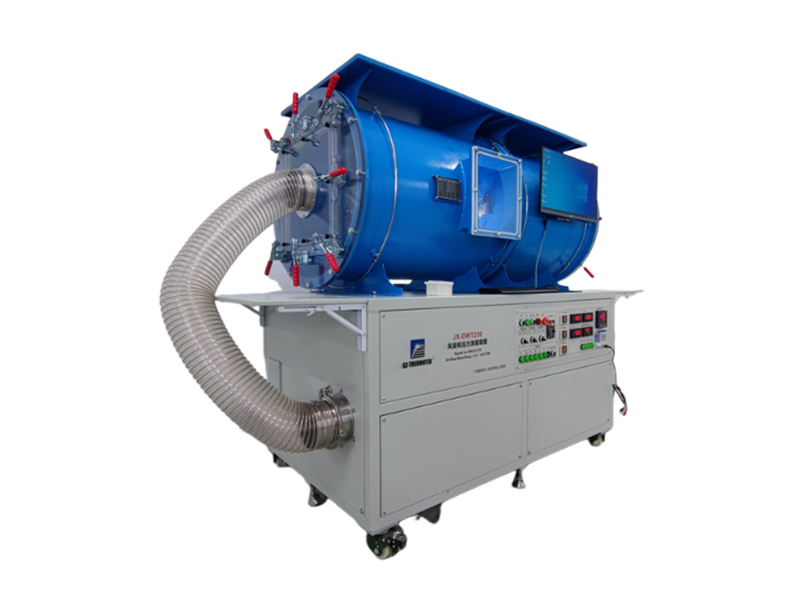

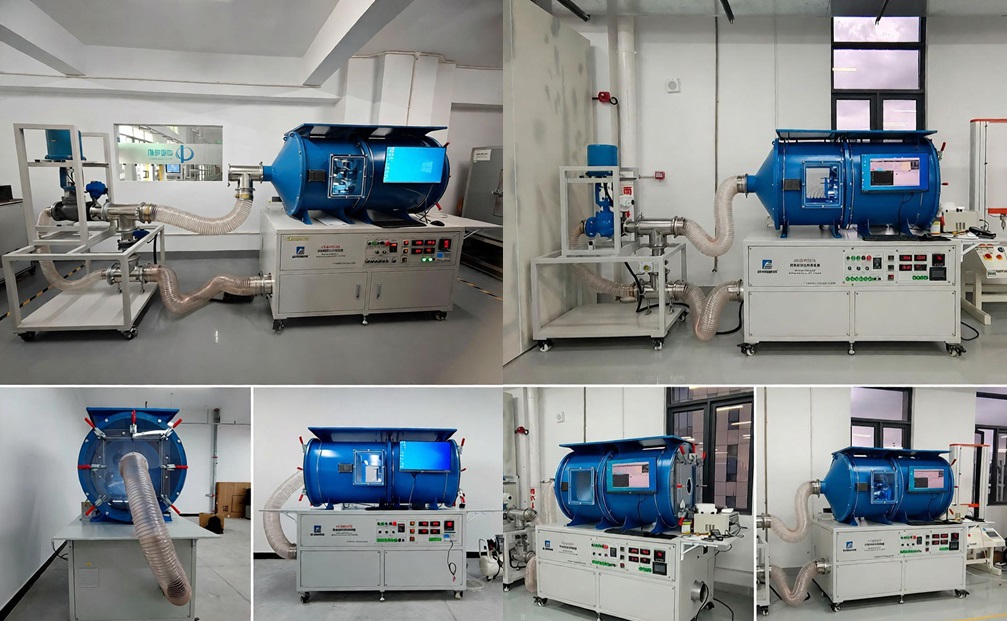

The high static pressure blower and fan performance test bench is primarily used for testing cooling fans, AC/DC fans, computer CPU axial fans, blowers, and centrifugal fans. As an AMCA-210 standard test stand, it is expertly customized for the unique characteristics of high static pressure and high rotational speed fans, delivering a precision solution for all your testing requirements.
Item No :
JX-DWT250Testing Standards :
ANSI/AMCA 210-07Airflow Range :
2.4~330CFM

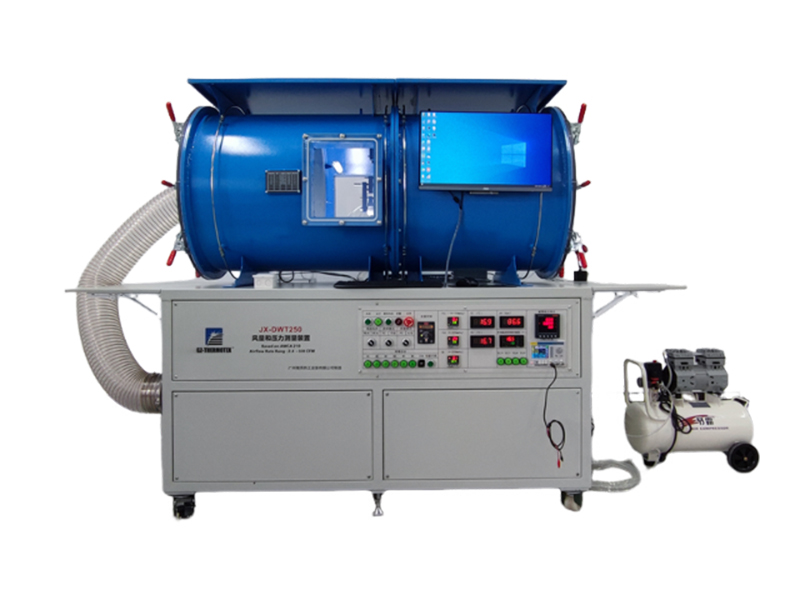

JX-DWT250 high static pressure blower and fan performance test bench conducts comprehensive performance evaluations by measuring fan airflow, air pressure, rotational speed, and impedance, generating essential PQ, SRC, and RQ curves. Engineered for extreme demands, it meets 10,000 Pa high-static-pressure requirements with a 10,000 Pa testing capability and supports ultra-high-speed testing up to 200,000 RPM (exceeding the 100,000 RPM challenge). Our core components, including the PWM controller and high-speed acquisition module, are developed in-house, ensuring strong electrical anti-interference and stable small-signal testing. This full-stack R&D model guarantees reliability, as field-proven by serving top-tier clients like Huawei and ZTE and leading academic institutions. It is the ideal solution for both fan performance validation and optimizing thermal (heat dissipation) efficiency.
|
1
Designed and manufactured according to AMCA 210-07 standard
|
2
Full system automated control
|
|
3
Equipment flow accuracy
|
4
Fan P-Q 5 test modes
|
|
5
Standard Temperature and Pressure (STP) conversion
|
6
High static pressure fan test
|
|
7
System Resistance Curve (SRC test)
|
8
Automated thermal module thermal resistance-flow (R-Q) test
|
|
9
Quality Control – Cpk test
|
10
Quality Control – Operation Point check
|
Understand the core measurement technology and working principle of the airflow test stand.
The blower and fan performance test bench primarily uses a differential pressure wind tunnel to measure airflow, utilizing a combination of multiple flow nozzles for testing. The nozzles are automatically blocked using cylinders, and flow-straightening screens are installed before and after the nozzles. Airflow is measured using the multi-nozzle combination method.
Flow Calculation Formula:
Single nozzle flow: QN = Cd × Un × An
Multiple nozzle combination flow: QT = ∑QN
Design Standards:
Designed and manufactured according to the following standards:
AMCA 210-07, GB/T1236-2000, ISO5801-1997, BS848, DIN 24163, JIS B 8330-1981
| Model | JX-WT18 | JX-WT60 | JX-WT250 | JX-WT1000 | JX-WT5000 |
|---|---|---|---|---|---|
| Standard | AMCA210-07 | ||||
| Airflow (CFM) | 0.02~18 | 1.0~95 | 2.4~330 | 2.9~1000 | 100~5000 |
| Pressure (mmAq) | 0~200 | 0~200 | 0~200 | 0~200 | 0~200 |
| Maximum Test Object Opening (mm) | 80×80 | 100×100 | 300×300 | 300×300 | 600×600 |
| Thermal Transmission Test Section / RQ Test | - | - | Optional Items | - | - |
| High Static Pressure Throttling Valve | - | - | Included Items | - | - |
| Multi-Fan Test Module | - | - | Optional Items | - | - |
| PWM Signal Generator | - | - | Included Items | - | - |
| Axial Force and Torque Resistance Measurement | - | - | Optional Items | - | - |
| Dimensions (L × W × H, mm) | 1700×1000×1680 | 1600×1100×1850 | 2300×1400×2130 | ||
| Power Supply | AC220V,5A, Single-phase | AC220V,5A, Single-phase | AC220V,5A, Single-phase | AC380V,20A, Three-phase | AC380V,20A, Three-phase |
The high static pressure blower and fan performance test bench is essential for precise testing across a wide range of components and research fields.
Primary testing applications include:
Air-Moving Devices:
Research & Development:
Component & Module Testing:
