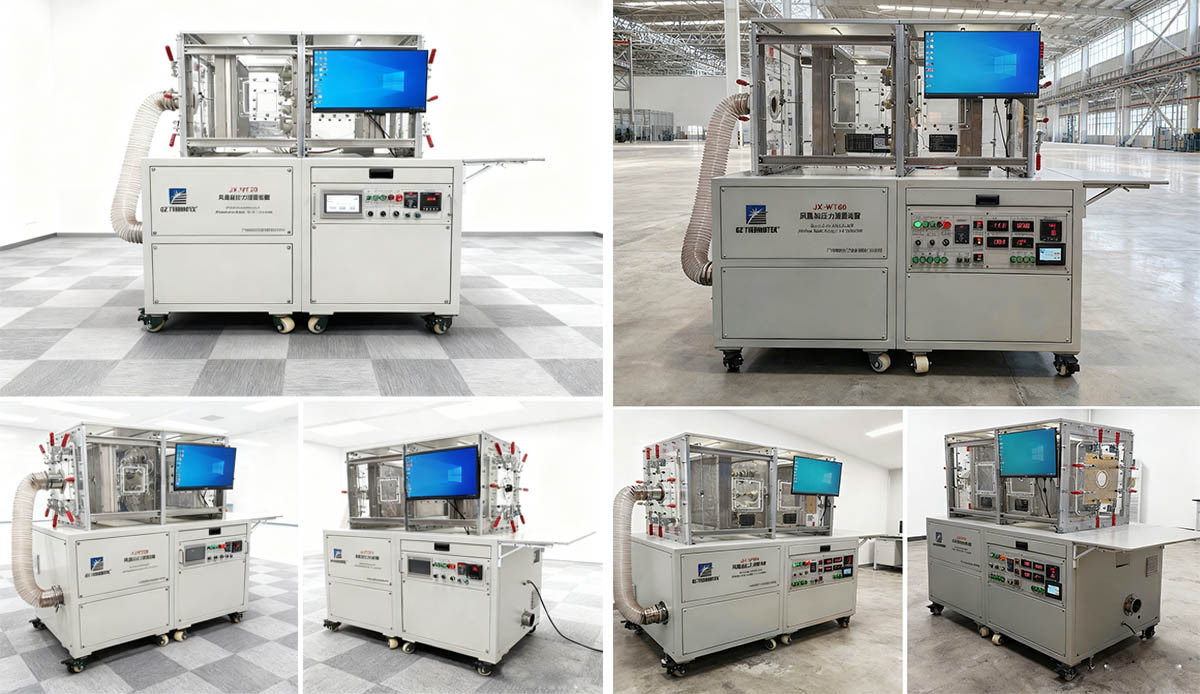

This industrial airflow and pressure testing equipment is a powerful device for testing airflow and air pressure. It is designed for the precise measurement of various fans and cooling fans.
The AMCA 210 is designed and manufactured strictly according to the following standards:
(1) GB/T1236-2000
(2) AMCA210-99
(3) ISO5801-1997
(4) BS848
(5) DIN 24163
(6) JIS B 8330-1981
Item No :
JX-WT20Testing Standards :
ANSI/AMCA 210-07Airflow Range :
0.02~20 CFMAMCA 210 Industrial Airflow And Pressure Testing Equipment JX-WT20

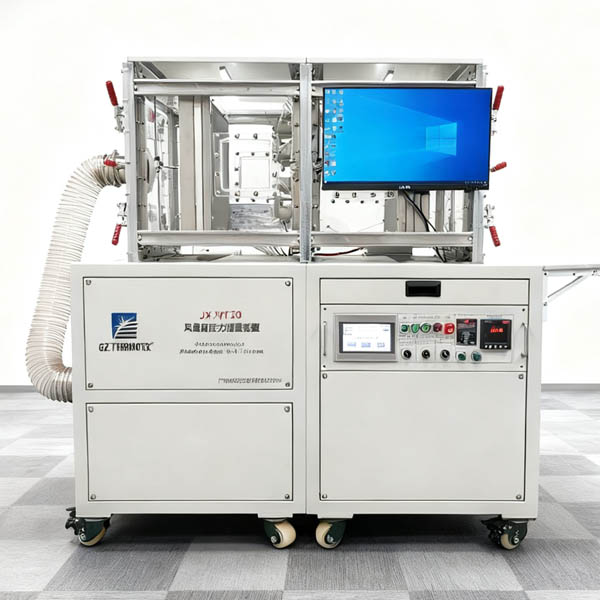

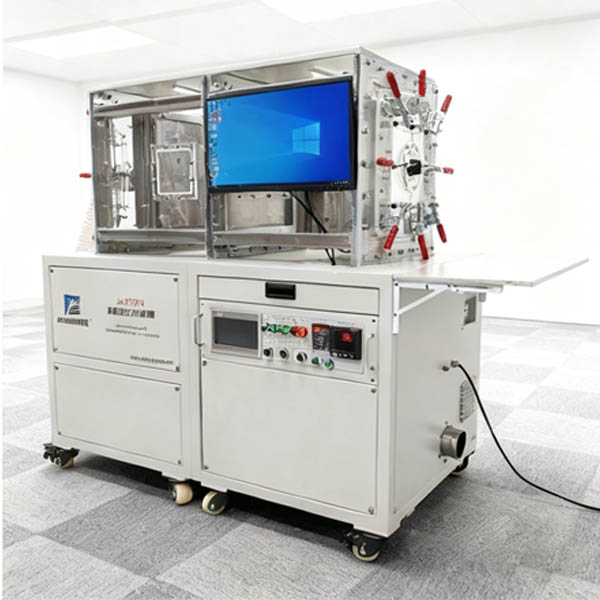

About JX-WT20: This model airflow testing equipment is manufactured by Guangzhou Jingxiu Thermal Equipment Co., Ltd. It is a wind tunnel pressure measurement system equipment with a maximum airflow test range of 20 CFM.
| Model | JX-WT4 | JX-WT60 | JX-WT250 | JX-WT600 | JX-WT1000 |
|---|---|---|---|---|---|
| Standard | AMCA210-07 | ||||
| Airflow (CFM) | 0.02–4.0 | 1.0–95 | 2.5–330 | 2.5–619 | 2.5–1120 |
| Pressure (mmAq) | 0–200 | 0–200 | 0–200 | 0–200 | 0–200 |
| Max Test Opening (mm) | 200 × 200 mm | 250 × 250 mm | 400 × 400 mm | 400 × 400 mm | 500 × 500 mm |

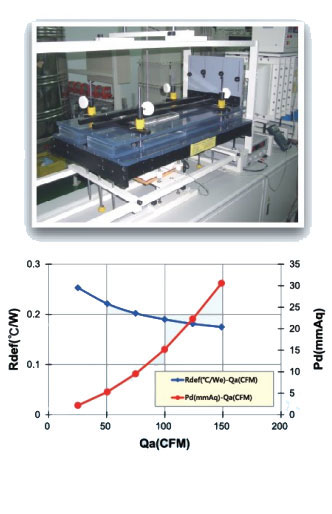

| Heat Transfer Section RQ Test | - | - | Optional | - | - |
| High Static Pressure Damper | - | - | Included | - | - |
| Multi-Fan Test Module | - | - | Optional | - | - |
| PWM Signal Generator | - | - | Included | - | - |
| Shaft Power & Torque Measurement | - | - | Optional | - | - |
| Dimensions (L × W × H, mm) | 1600 × 900 × 1600 | 1820 × 1000 × 1700 | 1820 × 1100 × 1750 | 1800 × 1200 × 1895 | 2450 × 1400 × 2100 |
| Power Supply | AC220V / 50Hz, 0.75 kW | AC220V / 50Hz, 1.5 kW | AC220V / 50Hz, 2.2 kW | AC380V / 50Hz, 3 kW | AC380V / 50Hz, 4 kW |
Flow Rate Calculation Formula
Flow rate of a single nozzle:
Qₙ = Cd× Uₙ × Aₙ
Total flow rate of multiple nozzles:
Q_T = ΣQₙ
Design Standards
Designed and manufactured according to the following standards:
AMCA 210-07; GB/T1236-2000; ISO5801-1997
BS848; DIN 24163; JIS B 8330-1981
Our Industrial Airflow And Pressure Testing Equipment JX-WT20 precisely covers application scenarios in multiple fields:
1. Multi-Device Testing:
Compatible with various cooling fans (AC/DC, CPU axial, etc.), micro blowers, centrifugal fans, and devices such as metal foam fans and piezoelectric fans. It also supports performance testing and optimization for power devices, IGBT modules, chip packages, microelectronic components, and thermal modules.
2. Research & Experimentation:
Applicable to fluid dynamics research, providing laboratory airflow testing under different wind speeds and delivering precise aerodynamic performance data.
3. Core Testing Capabilities:
Supports thermal testing, airflow, air pressure, RPM, and impedance measurements, and can generate PQ, SRC, and RQ curves to enhance cooling efficiency and system reliability.
We are proud to showcase well-known enterprises and institutions we serve, including industry leaders and top research bodies. We have provided professional services to numerous renowned domestic and international companies and institutions, spanning various sectors such as electronic technology, motor drives, communications, and new materials. Our clients include globally leading technology enterprises such as HUAWEI, ZTE, OPPO, AMD, Anker, and Goertek, as well as outstanding partners in key components and manufacturing, such as LUXSHAREICT, CATCHER, KELLER, TONGDA ELECTRIC, China Drive Motors, and VITO FLUID. Additionally, we have established strong collaborative relationships with educational and research institutions like Baibu Jiaotong University, as well as innovative technology companies such as APALTEX. These extensive cooperative experiences demonstrate our service capabilities and professional credibility across multiple industries and fields.
CLWT100 closed-loop wind tunnel test stand is specifically engineered for the precise thermal analysis and characterization of Printed Circuit Boards (PCBs) and other electronic components. The system offers meticulous control over the testing environment, maintaining stable temperatures from ambient (room temperature) up to 85°C. It generates standard air velocities of up to 7 m/s and is fully customizable upon request to provide high-speed airflow configurations reaching 50 m/s.
Read More
The high static pressure blower and fan performance test bench is primarily used for testing cooling fans, AC/DC fans, computer CPU axial fans, blowers, and centrifugal fans. As an AMCA-210 standard test stand, it is expertly customized for the unique characteristics of high static pressure and high rotational speed fans, delivering a precision solution for all your testing requirements.
Read More
Our automated airflow & pressure test rig is a professional-grade fan testing solution engineered in compliance with the AMCA 210 standard. Designed for precise performance evaluation of various cooling fans and blowers, this system delivers fully automated, high-precision measurements of airflow (CFM) and static pressure parameters.
Read More
The JX-DWT5000 high capacity fan test chamber is a professional-grade system designed for precise aerodynamic testing. It features a wide airflow measurement range from 271 to 8,486 m³/h, with scalable options available for higher capacity requirements. This test rig delivers high-accuracy data for a variety of industrial high-airflow applications.
Read More
This industrial airflow and pressure testing equipment is a powerful device for testing airflow and air pressure. It is designed for the precise measurement of various fans and cooling fans. The AMCA 210 is designed and manufactured strictly according to the following standards: (1) GB/T1236-2000 (2) AMCA210-99 (3) ISO5801-1997 (4) BS848 (5) DIN 24163 (6) JIS B 8330-1981
Read More
This thermal wind tunnel machine has the most complete fan performance testing and standard flow generation device. Suitable for thermal testing, airflow, air pressure, speed, and impedance testing.
Read More
This Air Flow Test Equipment JX-WT250 is a professional air test equipment. It is ideal for performance testing of diverse fans & heat dissipation equipment. Including: Cooling Fans, AC Fans, DC Fans, Micro Blowers, High-Speed Blowers, Nickel-Iron Foam, Piezoelectric Fans, CPU Axial Fans for Computers, Blowers, Centrifugal Fans, etc. Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
JX-WT1000 AMCA-210 Airflow Test Chamber with computerized control system and P-Q curve display, designed for high-precision fan performance testing. It is a precision aerodynamic testing solution for high-performance fan Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
