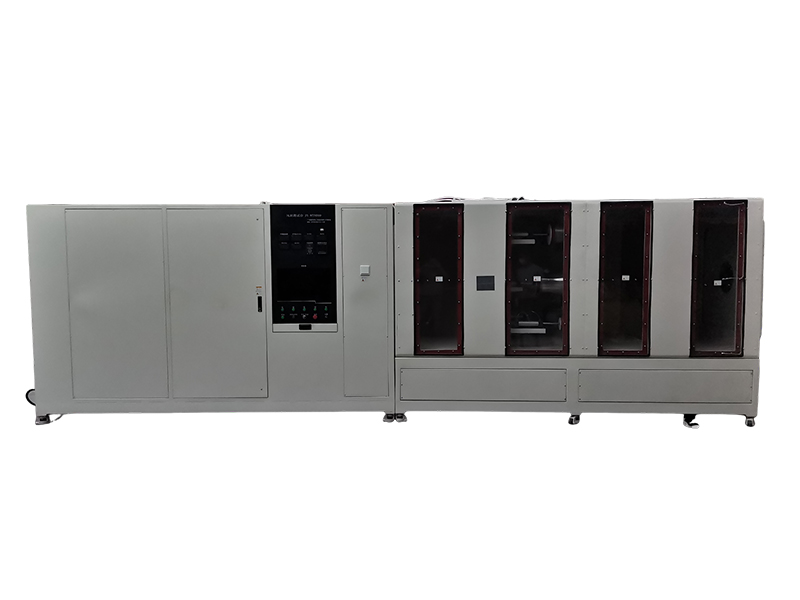

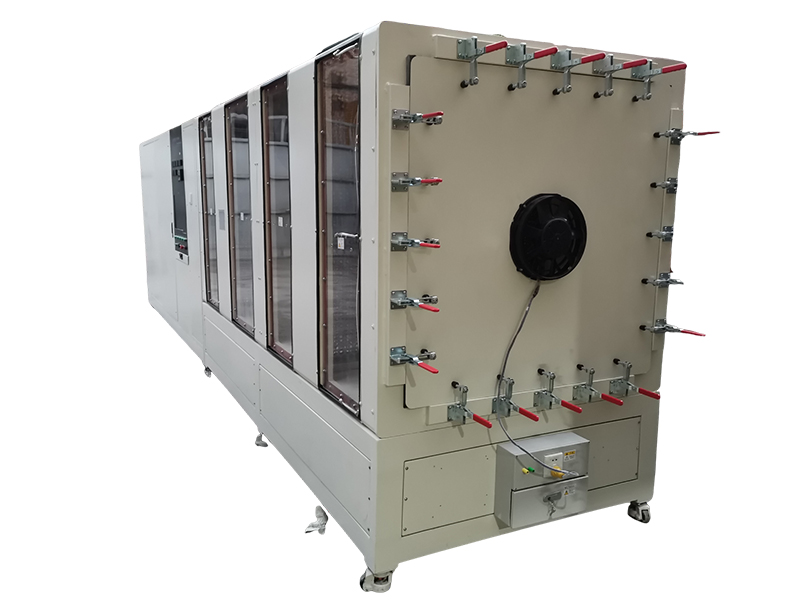

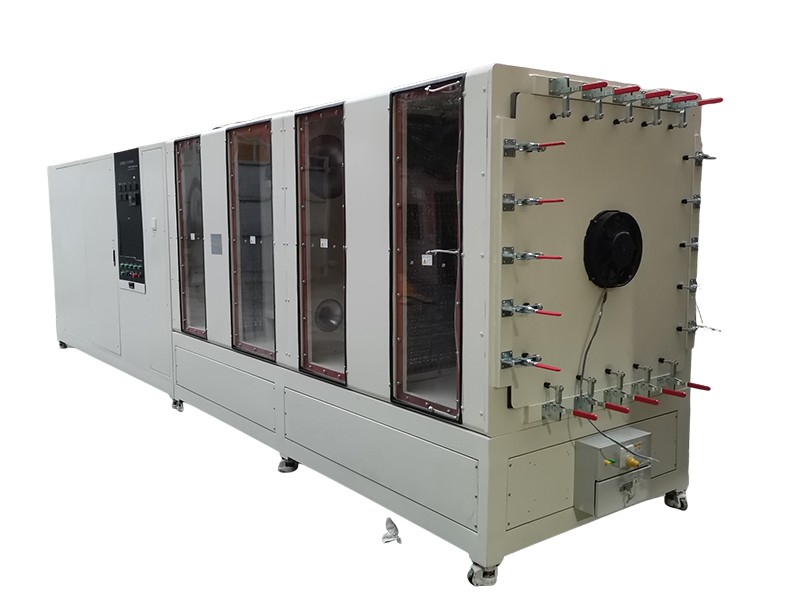

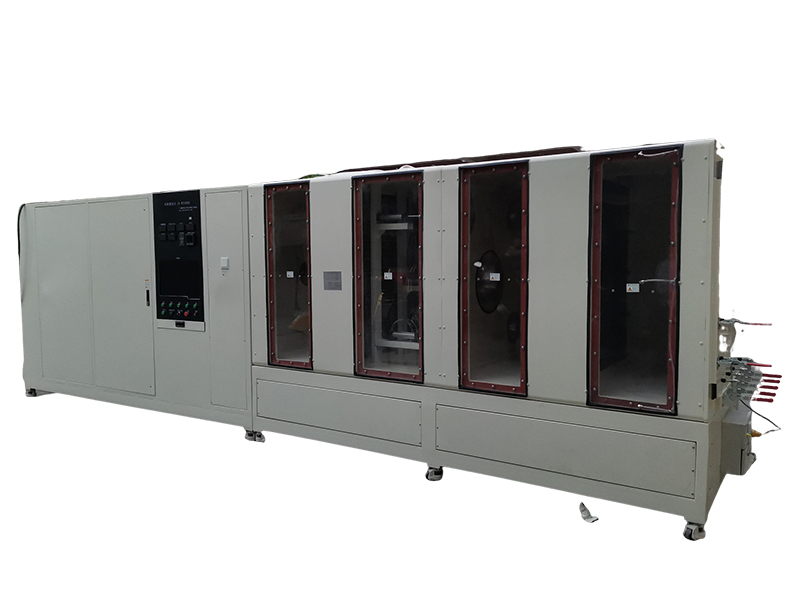

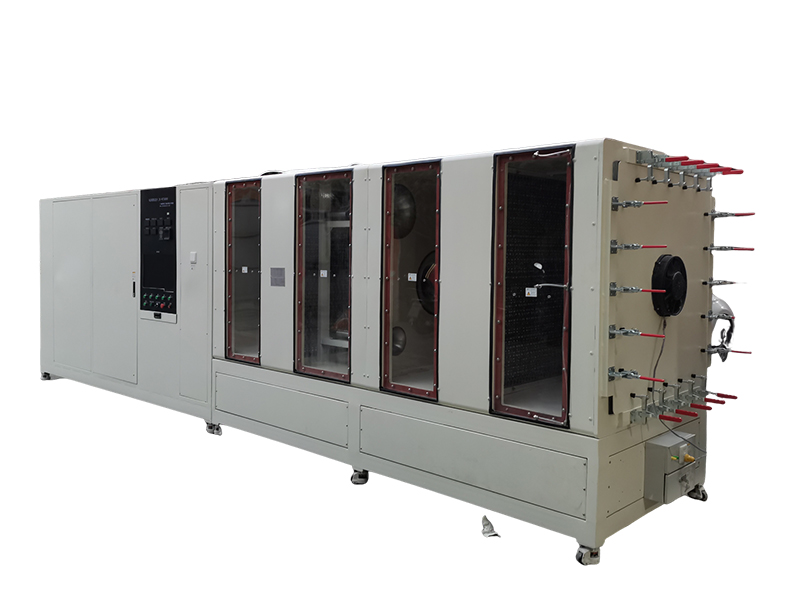

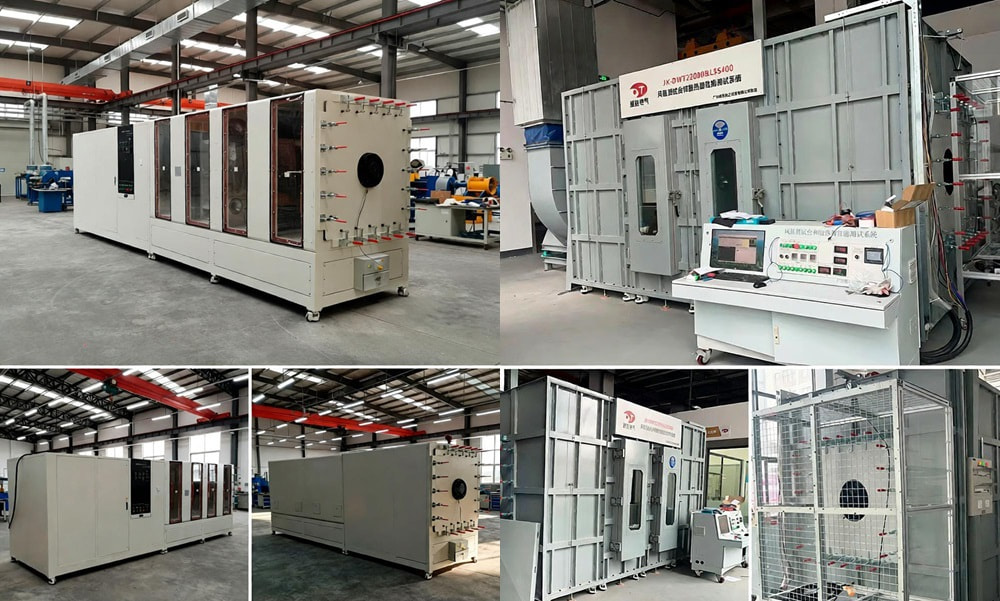

The JX-DWT5000 high capacity fan test chamber is a professional-grade system designed for precise aerodynamic testing. It features a wide airflow measurement range from 271 to 8,486 m³/h, with scalable options available for higher capacity requirements. This test rig delivers high-accuracy data for a variety of industrial high-airflow applications.
Item No :
JX-DWT5000Testing Standards :
ANSI/AMCA 210-07Airflow Range :
100~5000CFM
Beyond basic measurements of airflow, pressure, speed, and system impedance, this high capacity fan test chamber empowers engineers with automated data analysis. The system instantly generates critical characteristic curves - including PQ, SRC, and RQ graphs - to provide rigorous data support for product R&D and quality verification. Designed for versatility, it is also an ideal tool for fluid mechanics research and educational experiments, offering precise simulation and analysis for laboratories, manufacturers, and R&D centers worldwide.
Understand the core measurement technology and working principle of the airflow test stand.
The high capacity fan test chamber primarily uses a differential pressure wind tunnel to measure airflow, utilizing a combination of multiple flow nozzles for testing. The nozzles are automatically blocked using cylinders, and flow-straightening screens are installed before and after the nozzles. Airflow is measured using the multi-nozzle combination method.
Flow Calculation Formula:
Single nozzle flow: QN = Cd × Un × An
Multiple nozzle combination flow: QT = ∑QN
Design Standards:
Designed and manufactured according to the following standards:
AMCA 210-07, GB/T1236-2000, ISO5801-1997, BS848, DIN 24163, JIS B 8330-1981
| Model | JX-WT18 | JX-WT60 | JX-WT250 | JX-WT1000 | JX-WT5000 |
|---|---|---|---|---|---|
| Standard | AMCA210-07 | ||||
| Airflow (CFM) | 0.02~18 | 1.0~95 | 2.4~330 | 2.9~1000 | 100~5000 |
| Pressure (mmAq) | 0~200 | 0~200 | 0~200 | 0~200 | 0~200 |
| Maximum Test Object Opening (mm) | 80×80 | 100×100 | 300×300 | 300×300 | 600×600 |
| Thermal Transmission Test Section / RQ Test | - | - | Optional Items | - | - |
| High Static Pressure Throttling Valve | - | - | Included Items | - | - |
| Multi-Fan Test Module | - | - | Optional Items | - | - |
| PWM Signal Generator | - | - | Included Items | - | - |
| Axial Force and Torque Resistance Measurement | - | - | Optional Items | - | - |
| Dimensions (L × W × H, mm) | 1700×1000×1680 | 1600×1100×1850 | 2300×1400×2130 | ||
| Power Supply | AC220V,5A, Single-phase | AC220V,5A, Single-phase | AC220V,5A, Single-phase | AC380V,20A, Three-phase | AC380V,20A, Three-phase |
This high capacity fan test chamber is widely used for the aerodynamic performance evaluation and thermal optimization of:
Fan & Blower Components:
Power Electronics & Thermal Management:
Key Benefit: Significantly improves system cooling efficiency and operational reliability for critical hardware.
CLWT100 closed-loop wind tunnel test stand is specifically engineered for the precise thermal analysis and characterization of Printed Circuit Boards (PCBs) and other electronic components. The system offers meticulous control over the testing environment, maintaining stable temperatures from ambient (room temperature) up to 85°C. It generates standard air velocities of up to 7 m/s and is fully customizable upon request to provide high-speed airflow configurations reaching 50 m/s.
Read More
The high static pressure blower and fan performance test bench is primarily used for testing cooling fans, AC/DC fans, computer CPU axial fans, blowers, and centrifugal fans. As an AMCA-210 standard test stand, it is expertly customized for the unique characteristics of high static pressure and high rotational speed fans, delivering a precision solution for all your testing requirements.
Read More
Our automated airflow & pressure test rig is a professional-grade fan testing solution engineered in compliance with the AMCA 210 standard. Designed for precise performance evaluation of various cooling fans and blowers, this system delivers fully automated, high-precision measurements of airflow (CFM) and static pressure parameters.
Read More
The JX-DWT5000 high capacity fan test chamber is a professional-grade system designed for precise aerodynamic testing. It features a wide airflow measurement range from 271 to 8,486 m³/h, with scalable options available for higher capacity requirements. This test rig delivers high-accuracy data for a variety of industrial high-airflow applications.
Read More
This industrial airflow and pressure testing equipment is a powerful device for testing airflow and air pressure. It is designed for the precise measurement of various fans and cooling fans. The AMCA 210 is designed and manufactured strictly according to the following standards: (1) GB/T1236-2000 (2) AMCA210-99 (3) ISO5801-1997 (4) BS848 (5) DIN 24163 (6) JIS B 8330-1981
Read More
This thermal wind tunnel machine has the most complete fan performance testing and standard flow generation device. Suitable for thermal testing, airflow, air pressure, speed, and impedance testing.
Read More
This Air Flow Test Equipment JX-WT250 is a professional air test equipment. It is ideal for performance testing of diverse fans & heat dissipation equipment. Including: Cooling Fans, AC Fans, DC Fans, Micro Blowers, High-Speed Blowers, Nickel-Iron Foam, Piezoelectric Fans, CPU Axial Fans for Computers, Blowers, Centrifugal Fans, etc. Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
JX-WT1000 AMCA-210 Airflow Test Chamber with computerized control system and P-Q curve display, designed for high-precision fan performance testing. It is a precision aerodynamic testing solution for high-performance fan Main applications: thermal testing, airflow, air pressure, speed, impedance testing.
Read More
