A Practical Solution for Cold Reliability Testing of Battery-Powered Consumer Electronics

Guangzhou Jingxiu Thermal Equipment Co., Ltd. · Thermal & fluid test equipment manufacturer since 2013

Contents

1. The Problem: Cold Failures Are Still Common

2. Why Standard Chambers Fall Short

3. Introducing the NC860-20A

4. Core Advantages

5. Technical Specifications

6. Applications

7. Summary and Next Steps

1. The Problem: Cold Failures Are Still Common

In cold regions, battery-powered consumer electronics — smartphones, smartwatches, laptops and wearables — frequently suffer from sharp drops in battery performance, functional failures, or an inability to power on. These low-temperature failures damage user experience and brand reputation, and they are difficult to eliminate by design review alone.

Reproducing the conditions that cause them in the laboratory requires a chamber that can reach genuinely low temperatures, without introducing airflow that never exists in real use.

2. Why Standard Chambers Fall Short

Conventional natural convection chambers are typically limited to a temperature range of ambient +3 °C to +70 °C. They cannot simulate the −20 °C environment in which these field failures occur, which leaves a gap in the validation process for any product destined for a cold-climate market.

3. Introducing the NC860-20A

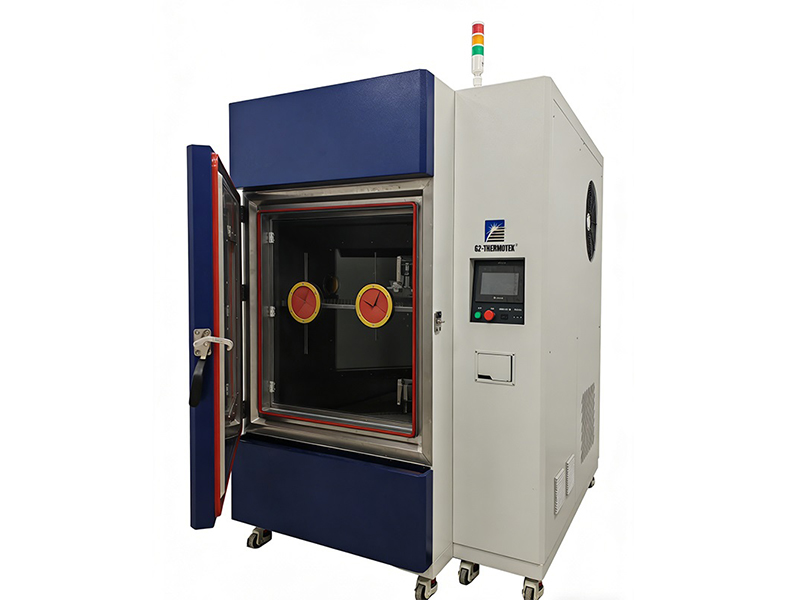

To close that gap, Jingxiu Thermal Equipment developed the NC860-20A low-temperature natural convection chamber, purpose-built for cold reliability testing of battery-powered consumer electronics. It reproduces extreme cold conditions precisely, helping manufacturers expose design weaknesses before products reach the market.

4. Core Advantages

Four design decisions separate the NC860-20A from a conventional constant-temperature chamber. Each one addresses a specific source of doubt in low-temperature reliability data.

4.1 Accurate Reproduction of Extreme Cold

The temperature range covers −20 °C to +85 °C, breaking through the limits of conventional chambers. It directly targets the known failure modes of smartphones, tablets and specialized cameras: battery capacity decay, failure to power on, and unresponsive touchscreens.

4.2 True Natural Convection with Adjustable Air Velocity

A hot-wire anemometer combined with PID variable-frequency control regulates air velocity from 0 to 0.2 m/s. A honeycomb flow straightener inside the chamber maintains a laminar state, closely reproducing indoor still-air or gentle-breeze conditions.

Unlike forced-convection equipment, there is no strong airflow to distort the test data, so results stay consistent with actual product use.

4.3 Stable and Repeatable Measurement

Temperature fluctuation is held to ±0.5 °C, with temperature deviation and uniformity both ≤2.0 °C. An anti-windup PID control algorithm safeguards repeatability and credibility, giving engineering teams a sound basis for design optimization.

4.4 Operator-Friendly and Safe by Design

The chamber comes standard with an 8 mm tempered glass access door incorporating two Φ150 mm operating ports, plus a heated-film insulated glass viewing window, so operators can work directly and observe live at low temperatures. Multiple protections against leakage, over-temperature, and compressor overheat and over-current support extended unattended operation.

5. Technical Specifications

6. Applications

The NC860-20A is widely used for low-temperature failure testing, high/low temperature cycling, and thermal characterization of battery-powered consumer electronics, including:

● Smartphones and feature phones

● Smartwatches and smart bands

● Laptops and tablets

● Wearable devices

● Specialized cameras

It is an essential reliability tool at both the R&D and quality control stages of consumer electronics development.

7. Summary and Next Steps

Cold-climate markets punish products that were only validated at room temperature. The NC860-20A extends the test envelope down to −20 °C while preserving genuine natural-convection conditions, so the data collected in the laboratory reflects what users actually experience.

If you need to validate products for cold-climate markets, or require a customized chamber configuration for a specific product size or test profile, contact Guangzhou Jingxiu Thermal Equipment Co., Ltd. for detailed specifications and a quotation.
